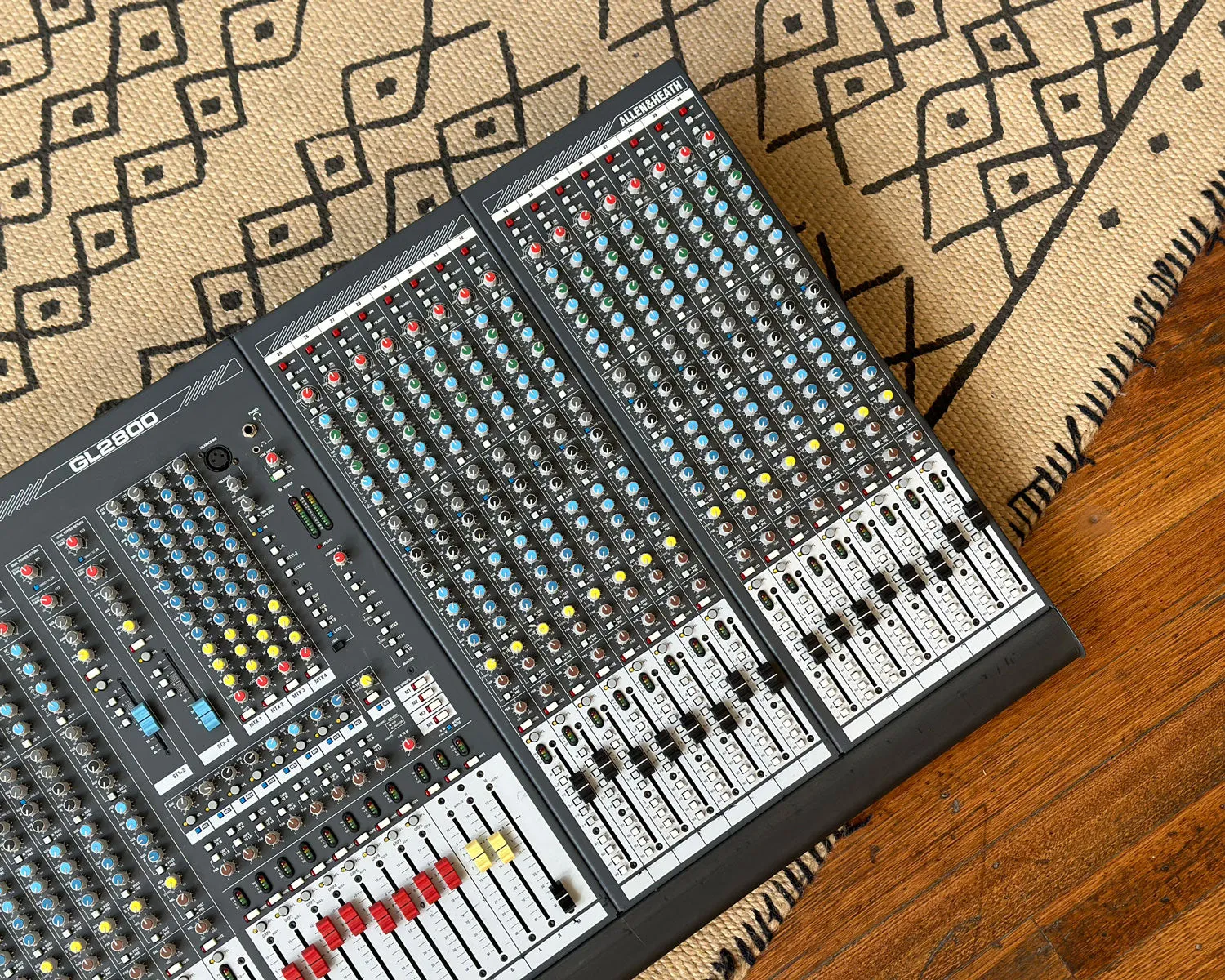

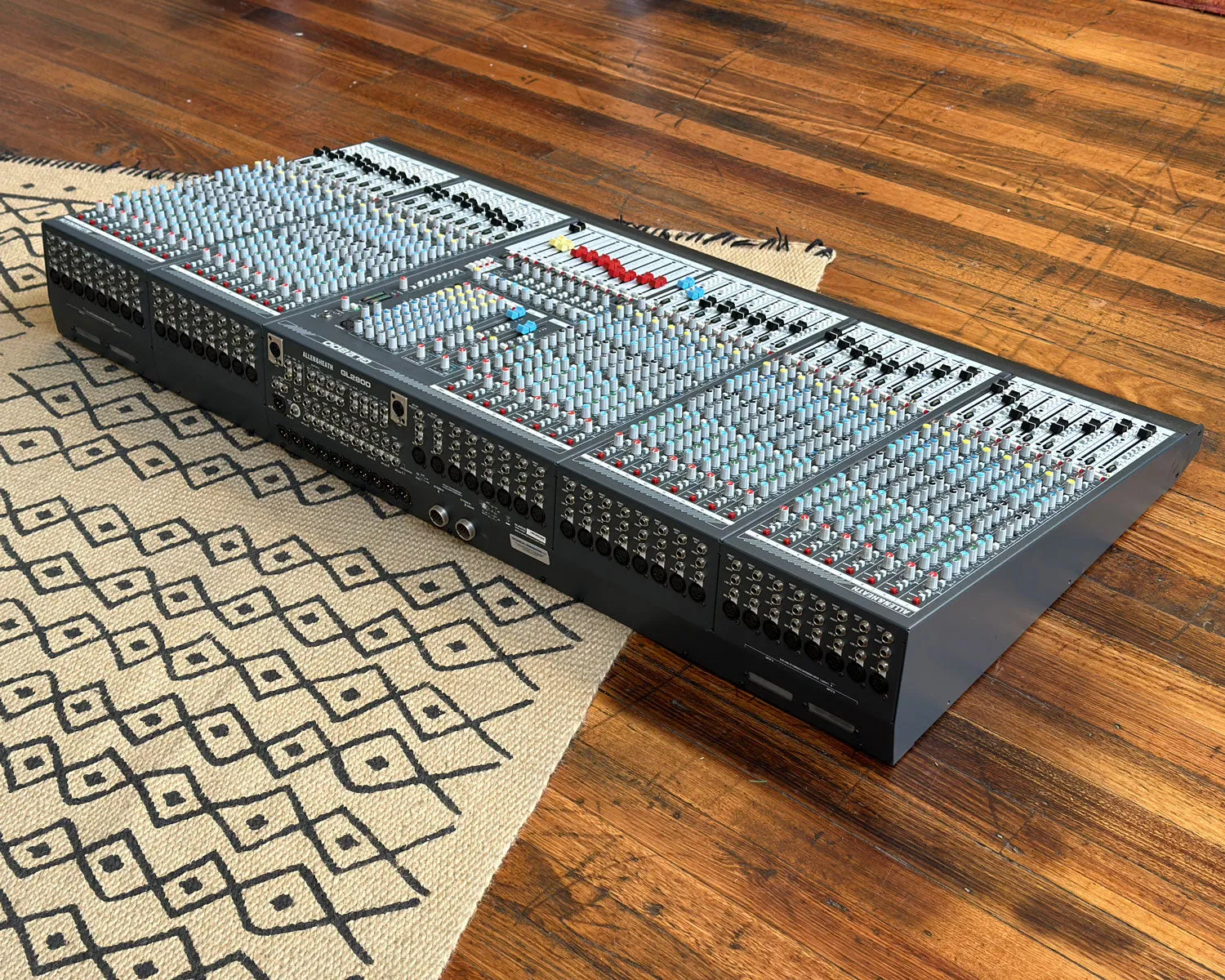

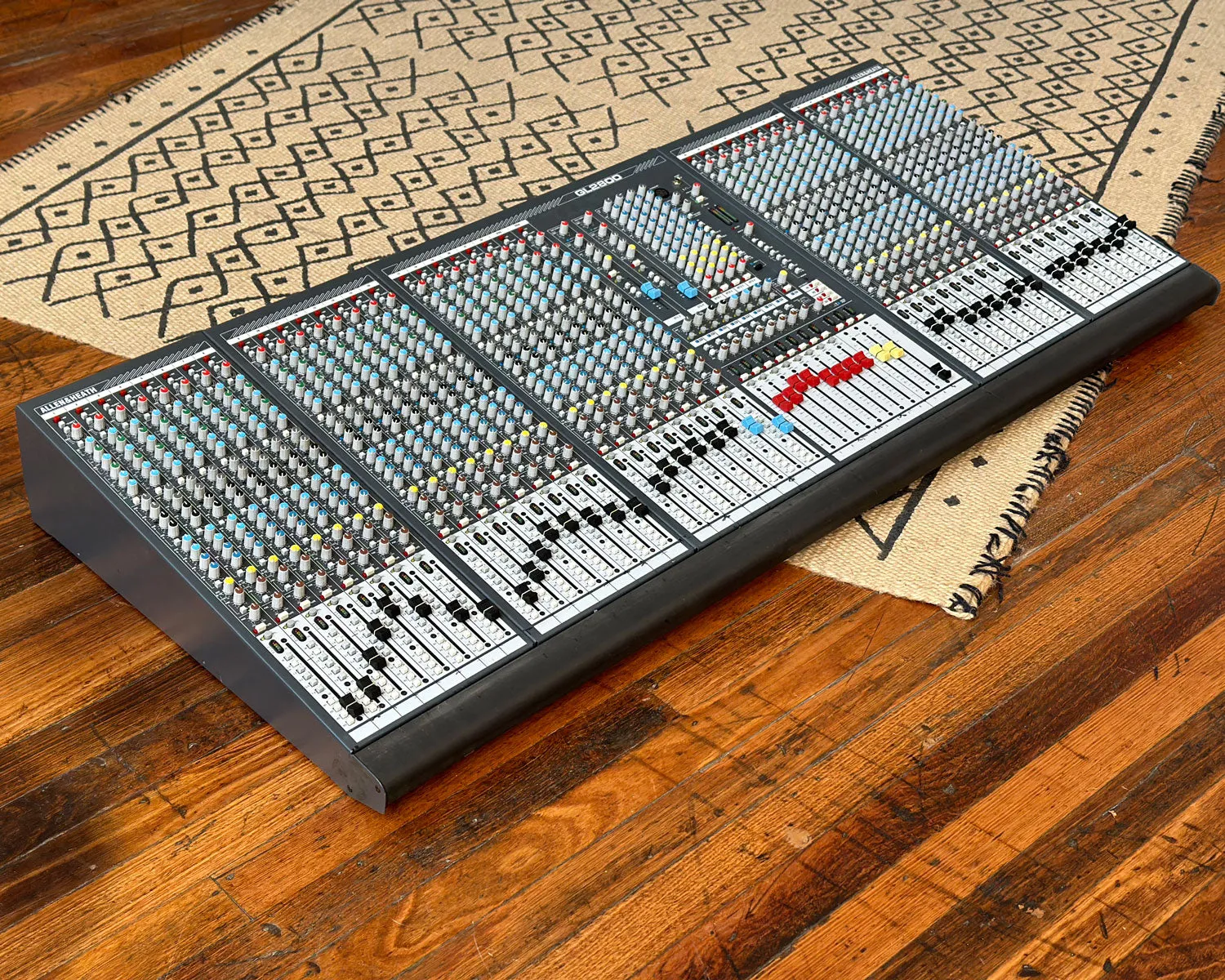

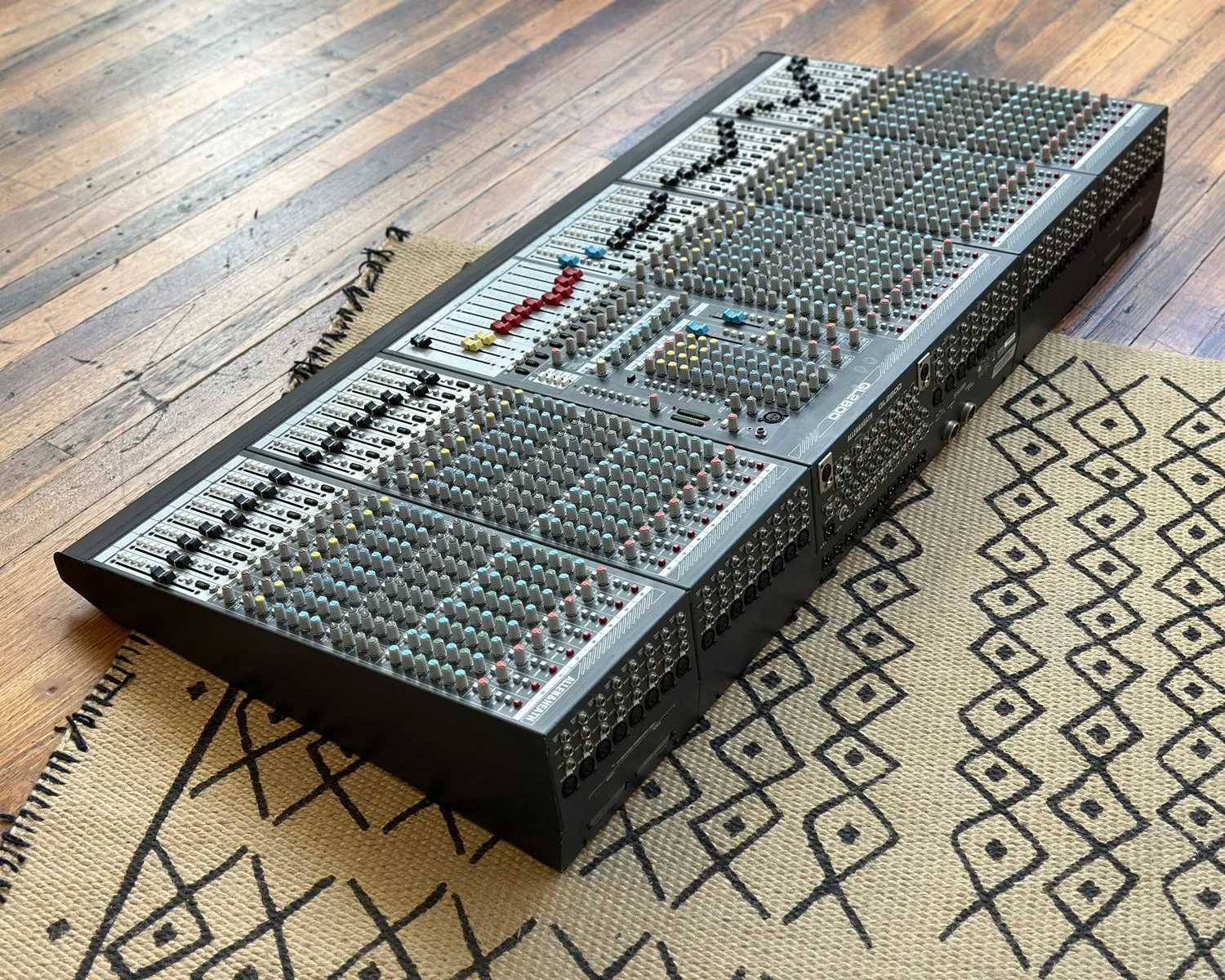

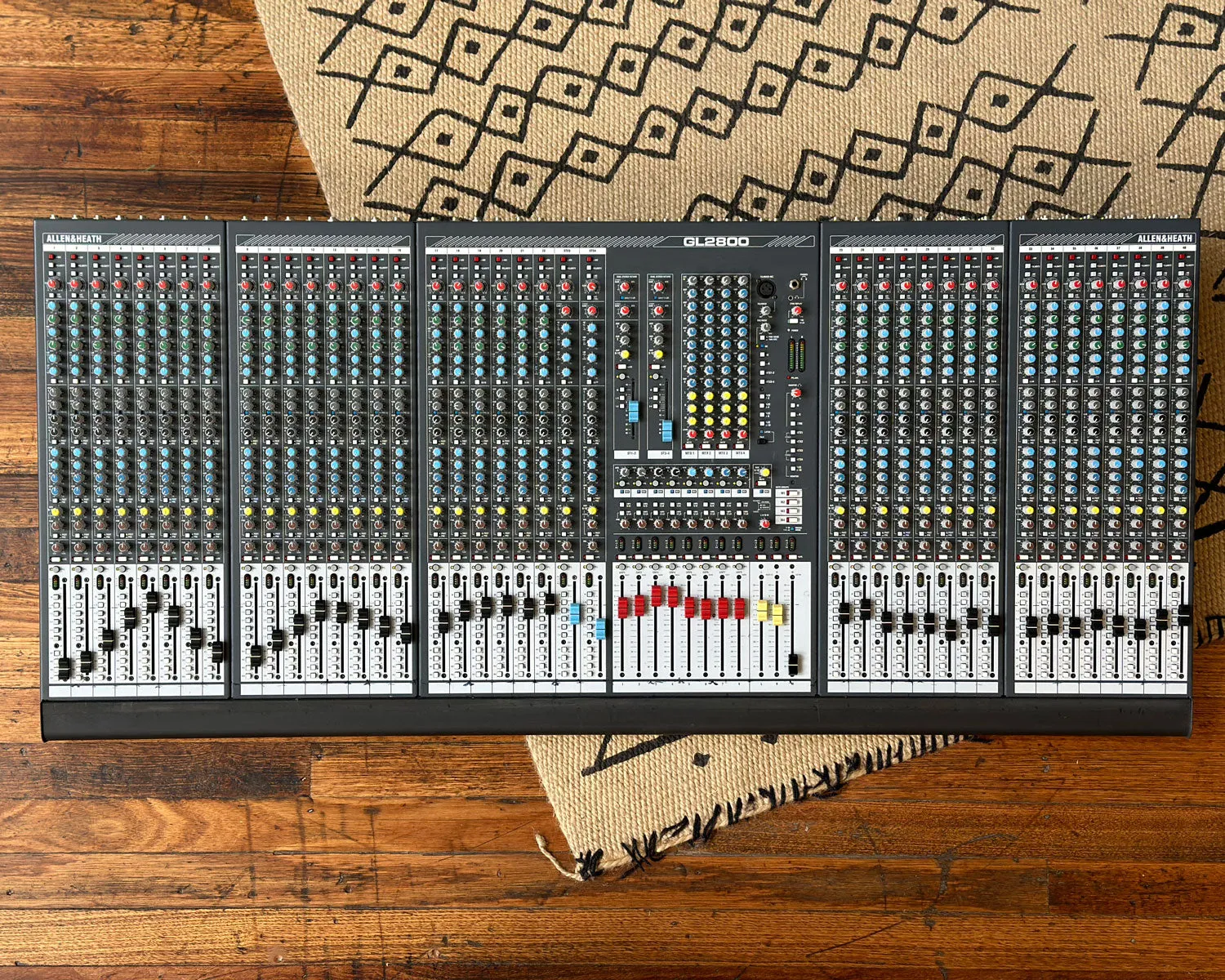

When used as a monitor console, you can enjoy up to 14 mixes, including 8 wedges and 3 stereo IEMs, all controlled via the dedicated engineer's monitor control using the M fader. With a whopping 40 input channels, you're well-equipped to handle any festival or gig. Aux 9-10 even comes with dedicated level and pan control, along with mute and stereo monitoring capabilities. You can create an LCR mix from the LR and M buses and add 6 stereo line sources using the full-featured stereo channels, plus 2 extra short-fader dual stereo returns in the master section.
The new 74dB range mic preamp can handle an impressive range of signals, complemented by a responsive 4-band EQ, 100Hz channel high-pass filters, individual phantom power, and polarity switching. Additionally, you have 8 audio groups and a 12x4 Matrix that provides an efficient way to create studio-quality IEM mixes with control over ambiance and 'more me' preferences.
More feautres include the matrix talk-back and the option for mono or stereo monitoring. The electronically balanced XLR outputs boast 26dBu drive capability. We've taken care of the details with metal jacks, gold-plated XLRs, sealed pots, and switches. Each circuit card is individually assembled with nutted pots, and there's a solid copper bus bar grounding system. Plus, you have the Sys-Link V2 console linking option, a built-in oscillator/pink noise generator with a patchable output, extensive metering, and a plethora of other features to explore.
Tested and all channels working and passing sound. Only faults are some LED's are not functioning. LED's that are no longer working are listed below: Mute LED - ch: 4, 8, 11, 18, 19, 25, 27, 32 PFL LED - ch: 25

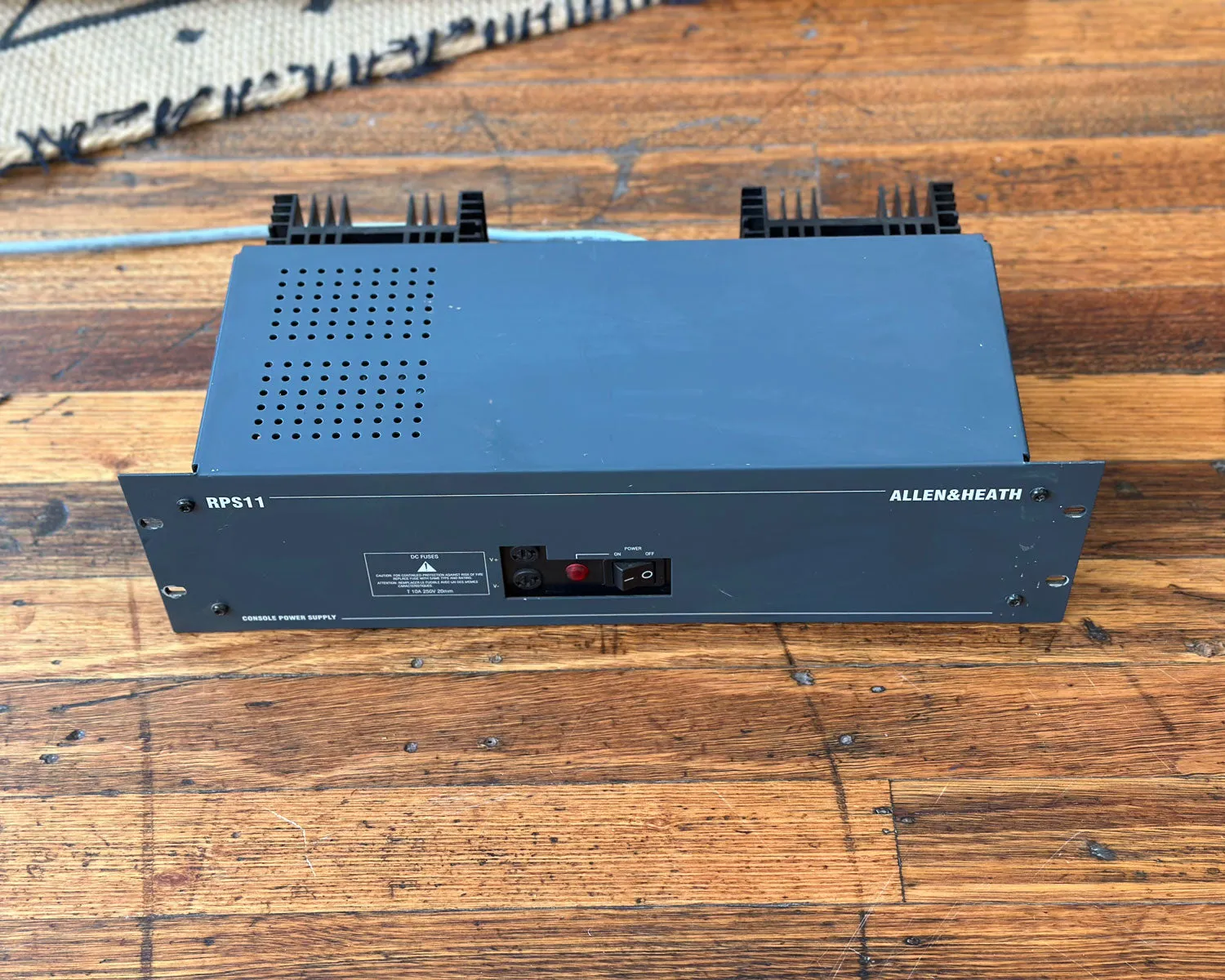

Some LED indicators on channels not functioning. Sold as is, at a very low price due to the size and extensive testing required. Includes rackmount power supply.
Product Specs
- Item Number: 31039
- Make:
- Model:
- Condition:
- Finish: Blue
- Categories: ⇒
- Made In: China
- MPN: 31039
